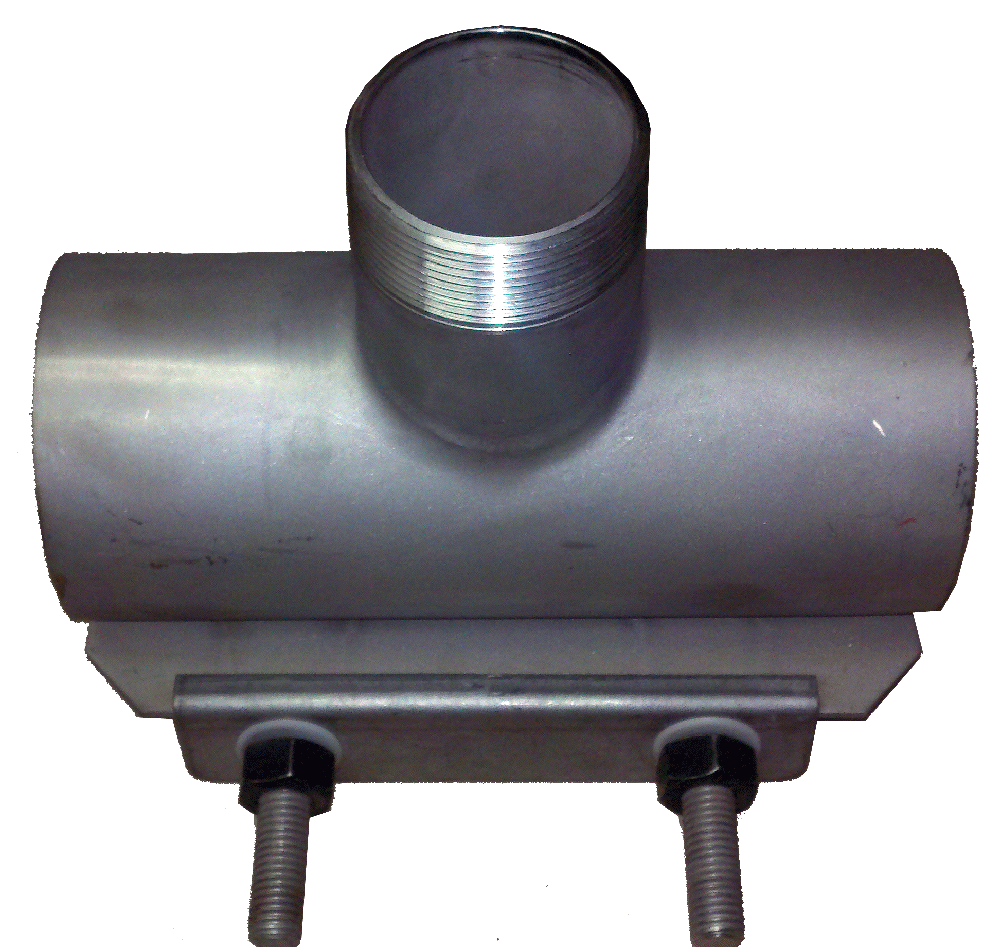

Steel Pipe Saddles/Sleeves
Copper Pipe Saddles are specifically designed for use on copper mains. Our saddles can be used on domestic water, heating hot water, Air, natural gas, glycol and sewage mains. Please specify mainThese saddles are specifically designed for steel and pvc main applications size and outlet size when ordering. all saddle have a stainless steel IP male thread for easy installation of you full port ball valve. Please call with any questions and we will gladly help you pick the correct saddle for your application.
Panel: Type 304 (18-8) Stainless steel per ASTM A240
• Gasket: Nitrile (Buna-N, NBR) Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for oils, acids, alkalines, most Hydrocarbon Fluids (aliphatic), portable water, and other chemicals within temperature range of –400 F - +1800 F.
• Lugs: Type 304 (18-8) Stainless steel per ASTM A240.
• Bolts and Nuts: Type 304 (18-8) Stainless steel per ASTM A193 & A194.
• Note: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
• Outlet: Type 304 (18-8) Stainless steel per ASTM A276
• All outlets are "Male Threaded NPT" Working Pressure: Maximum 150 PSI.
